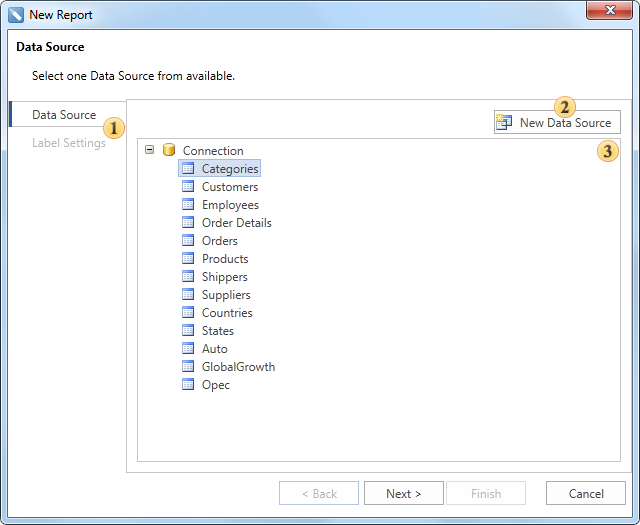

The Label Report wizard is used to create reports which have labels. The picture below shows a window of the Label Report wizard:





The Description Panel. Shows description for the current step.

The Steps Panel shows step of report creation.

The Selection Parameters Panel shows options, actions, settings available on this step.

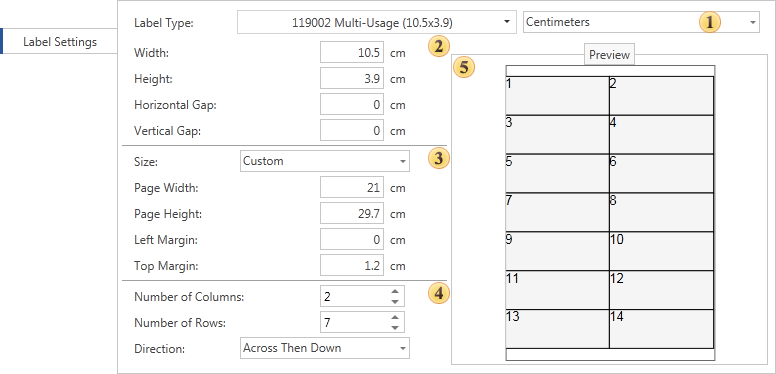

A Label Report is created in two steps. The Data Source is defined on the first step, Label Settings are defined on the second step. The picture below shows the Selection Parameters Panel on the second step of the Label Settings.





The Type Panel is used to select the Label Type and units.

The Size Label Panel is used to change the label size.

The Size Pages Panel is used to select the page size or manually set width and height and margins of a page.

The Configuration Label Panel is used to set a number of rows, columns and direction of labels.

The Preview Panel is used to preview how labels are placed on a page.
