Create a Sample Page With Report Angular Viewer

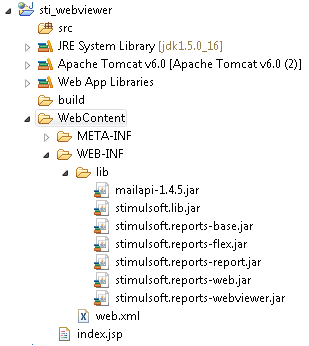

Create a simple page with a report webviewer. To do this, put the following libraries into the WebContent\WEB-INF\lib\ directory: stimulsoft.lib.jar, stimulsoft.reports-base.jar, stimulsoft.reports-report.jar, stimulsoft.reports-flex.jar, stimulsoft.reports-web.jar, stimulsoft.reports-webviewer.jar . As a result, one can see the following (Figure 8):
Next, open the web.xml for editing, it should look like in Listing 2:
web.xml |
... <?xml version="1.0" encoding="UTF-8" ?> <web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns="http://java.sun.com/xml/ns/javaee" xmlns:web="http://java.sun.com/xml/ns/javaee/webapp_2_5.xsd" xsi:schemaLocation="http://java.sun.com/xml/ns/javaee" id="WebApp_ID" version="2.5"> <display-name>sti_webviewer</display-name> <welcome-file-list> <welcome-file>index.jsp</welcome-file> </welcome-file-list> <!-- configuration, this parameter indicates the main application directory --> <servlet> <servlet-name>StimulsoftResource</servlet-name> <servlet-class>com.stimulsoft.web.servlet.StiWebResourceServlet</servlet-class> </servlet> <servlet-mapping> <servlet-name>StimulsoftResource</servlet-name> <url-pattern>/stimulsoft_web_resource</url-pattern> </servlet-mapping> <servlet> <servlet-name>StimulsoftAction</servlet-name> <servlet-class>com.stimulsoft.webviewer.servlet.StiWebViewerActionServlet</servlet-class> </servlet> <servlet-mapping> <servlet-name>StimulsoftAction</servlet-name> <url-pattern>/stimulsoft_webviewer_action</url-pattern> </servlet-mapping> </web-app> ... |
Leave unchanged the remaining web.xml blocks, which defines the servlets required for working. Then, edit the index.jsp (Listing 4).
index.jsp |
... <!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Strict//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-strict.dtd"> <%@page import="com.stimulsoft.report.StiReport"%> <%@ page language="java" contentType="text/html; charset=utf-8" pageEncoding="UTF-8"%> <%@ taglib uri="http://stimulsoft.com/webviewer" prefix="stiwebviewer"%> <html xmlns="http://www.w3.org/1999/xhtml"> <head> <title>Stimulsoft Reports for Java</title> <stiwebviewer:resources /> <style type="text/css"> .t1 td { padding-right: 30px } </style> </head> <body> <% pageContext.setAttribute("report", new StiReport()); %> <h1 align="center">My first report!</h1> <stiwebviewer:webviewer report="${report}" /> </body> </html> ... |
It will display empty webviewer (because of empty StiReport object). Add taglib directives in the JSP. They will work with custom tags on the page.
Custom Stimulsoft tag |
... <%@ taglib uri="http://stimulsoft.com/webviewer" prefix="stiwebviewer"%> ... |
Add a tag <stiwebviewer:resources />, tag used to load necessary resources (css & js) for webviewer, it haven’t any attributes, it must be placed inside HTML <head> tag.
